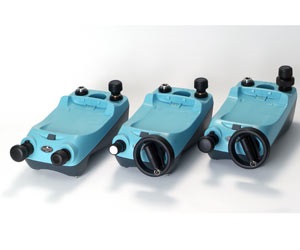

There are three pressure generation stations, also available in ATEX approved versions for stand- alone use in hazardous areas:
PV 621 – pneumatic pressure generator for pressures 95% vacuum to 20 bar (300 psi)
PV 622 – pneumatic pressure generator for pressures 95% vacuum to 100 bar (1500 psi)
PV 623 – hydraulic pressure generator for pressures up to 1000 bar (15000 psi).
Each pressure station is designed for stand-alone operation as a pressure generator and can replace conventional hand pumps and gas bottles to provide greater efficiency and ease of use. They can be used on the workbench or combined with a reference instrument, such as the DPI 104 they can be used as comparators and pressure calibrators.
Combining any of the pressure stations with a PM 620 pressure module and the DPI 620 calibrator creates a uniquely capable, self-contained pressure calibrator.
|Maximum pressure||PV 621 20 bar (300 psi) pneumatic
PV 622 100 bar (1500 psi) pneumatic
PV 623 1000 bar (15000 psi) hydraulic
|Pressure media||PV 621 and PV 622 non-corrosive gases,
PV 623 de-mineralized water or mineral oil
(ISO viscosity grade < 22)
|Operating temperature||-10° to 50°C (14° to 122°F)
For water +4 to +50°C (39 to 122°F)
|Storage temperature||-20 to 70°C (-4 to 158°F) (must be empty of water)|
|Shock and vibration||BS EN 61010:2001; Def stan 66-31, 8.4 cat III|
|Pressure safety||Pressure equipment directive class SEP|
|Size and weight||Pressure equipment directive class SEP|
|Over Pressure||Each station can be fitted with an overpressure protection device to protect both the pressure module ad the device under test.|
|Physical||Size and weight: 450 mm x 280 mm x 235 mm,
PV 621 2.65 kg, PV 622 3.30 kg, PV 623 3.75 kg
