DIU System for Electric RTG ERTG
Các câu hỏi, thắc mắc, thông tin liên quan đến sản phẩm được giới thiệu trong video dưới đây từ khâu mua sắm, lựa chọn, sử dụng, cài đặt hay thay thế, vui lòng liên hệ với INO Team để được hỗ trợ và tư vấn kịp thời.

– – – LƯU Ý – – -: Với những thiết bị không được liệt kê ở đây không có nghĩa là chúng tôi không hỗ trợ được bạn, công ty chúng tôi chuyên đề xuất giải pháp, tư vấn mua sắm và cung cấp thiết bị về cảm biến công nghiệp, đo lường và tự động hoá cho các công ty trong và ngoài nước.
Công ty TNHH Giải pháp và Công nghệ Đo lường INO, nhà cung cấp các thiết bị đo lường và tự động hóa công nghiệp.
This channel is for people who are working in container handling terminals and dealing with cranes maintenance.

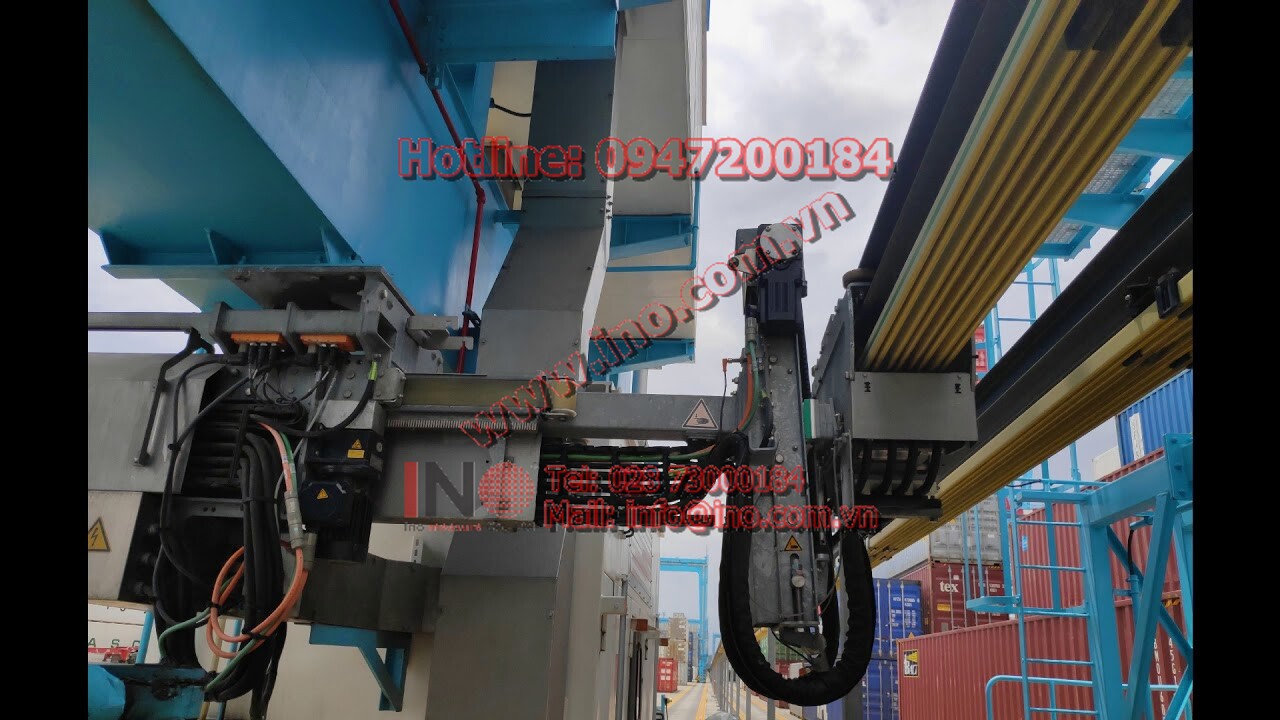

The first video in Cranes Technology channel is explaining DIU system or Drive In Unit.

Instead of the conventional method for feeding an RTG with electric power it needs using a Gen-Set as a main and only source of power, the ERTG uses the DIU (Drive in Unit) to feed an ERTG with a constant and fixed source of power.

This system eliminates the headache of using the Gen-Set as a source of power. The Gen-Set system has a lot of problems related to engine maintenance and onsite breakdowns.
– The system consists of 3 main parts:
1- Vertical Unit
2- Horizontal Unit
3- Current Collecting Unit

The most important information when dealing with DIU faults is to know where and how each sensor in the system works. Below is a list of all sensors used in the system, followed by a description of each sensor.

1- Magnetic Switch 1.
2- Magnetic Switch 2.
3- Laser Sensor.
4- Horizontal Unit Touched.
5- Vertical Unit Touched.
6- Vertical Unit Lifted.
7- Horizontal Unit in.
8- Vertical Unit Bottom.
9- Sensor Bearing.

1- Magnetic Switch 1&2
The working area along the steel structure is divided into zones of operation. Sensors signals differ according to each zone and consequently the action taken by the control system. Magnetic switch 1&2 are together responsible for defining the zone of operation.

2- Laser Sensor
For sake of protecting the current collector unit from crushing with the steel structure, a laser sensor is used for measuring the distance to the steel structure. In case of distance is too near to the structure, unit extending will be prevented.

3- Horizontal Unit Touched
This sensor is responsible for giving a signal to the controller when the current collector unit touches the steel structure. This means that no more horizontal movement is needed.

4- Vertical Unit Touched
Vertical unit touched sensor is performing the same function of the horizontal unit touched sensor but for the vertical movement. It signals the sense of the steel structure to the controller to stop the vertical movement.

5- Vertical Unit Lifted
For the vertical unit to move, it must be unlocked. Vertical unit lifted sensor must be activated so that vertical unit can extend.

6- Horizontal Unit in
This sensor is used to detect if the horizontal unit is in or out.

7- Vertical Unit Bottom
This sensor detects when vertical unit reaches its base position ¨Park position¨ when arm is retracted.

Thanks for watching my first video. Please subscribe and share the video, it’s important to me to continue providing more videos explaining different crane parts. Also please leave a comment in case of any questions or correction for the information mentioned in the video
