datasheet.
|
Product characteristics |
||||||||||
|
Power supply |
||||||||||
|

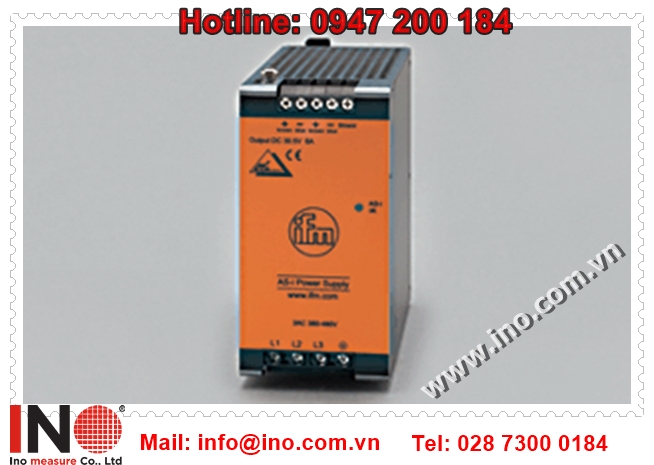

Three-phase AS-i power supply |
||||||||||
|
Integrated data decoupling |
||||||||||
|
Application |
||||||||||
|
Application |
AS-i system voltage for masters, sensors, actuators and modules |
|||||||||
|
Electrical data |
||||||||||
|
Input voltage range [V] |
380…480 AC; -15 % / +20 % |
|||||||||
|
Nominal voltage [V] |
3 x 400 AC |
|||||||||
|
Frequency range [Hz] |
47…64 |
|||||||||
|
Nominal frequency [Hz] |
50 / 60 |
|||||||||
|
Output voltage (AS-i) [V] |
30.5 DC |
|||||||||
|
Output power [W] |
244 |
|||||||||
|
Output power peak [W] |
256; briefly to load bus capacities after power on |
|||||||||
|
Power factor |
0.53 (400 V AC; 50 Hz) / 0.52 (480 V AC; 60 Hz) |
|||||||||
|
Power reserve [%] |
5 |
|||||||||
|
Output current (AS-i) [A] |
8 |
|||||||||
|
Residual ripple [mVpp] |
< 90 |
|||||||||
|
Switch-on peak current [A] |
4 (400 V AC; 50 Hz) / 4 (480 V AC; 60 Hz) |
|||||||||
|
Efficiency [%] |
92 (400 V AC; 50 Hz) / 92.1 (480 V AC; 60 Hz) |
|||||||||
|
Short-circuit proof |
yes |
|||||||||
|
Overload protection |
yes |
|||||||||
|
Overload performance |
constant output current |
|||||||||
|
Overvoltage protection [V] |
< 36 |
|||||||||
|
Excess temperature protection |
yes |
|||||||||
|
External input protection |
≤ B-6 A / ≤ C-3 A |
|||||||||
|
Power-on delay time [ms] |
≤ 90 |
|||||||||
|
Derating [W/K] |
6 (60…70 °C) |
|||||||||
|
Mains buffering time [ms] |
34 (400 V AC; 50 Hz) / 53 (480 V AC; 60 Hz) |
|||||||||
|
Protection class |
I |
|||||||||
|
Input current [A] |
0.7 (400 V AC; 50 Hz) / 0.6 (480 V AC; 60 Hz) |
|||||||||
|
Power loss [W] |
21.2 (400 V AC; 50 Hz) / 20.9 (480 V AC; 60 Hz) |
|||||||||
|
Back feeding protection [V] |
≤ 35 DC |
|||||||||
|
Block diagram |
||||||||||
|
Output curve |
||||||||||
|
Characteristic curve for degree of efficiency / power loss |
||||||||||
|
Characteristic curve for derating |
||||||||||
|
Characteristic curve for mains buffering time |
||||||||||
|
Outputs |
||||||||||
|
Parallel connection of outputs |
no |
|||||||||
|
Series connection of outputs |
no |
|||||||||
|
Environment |
||||||||||
|
Ambient temperature [°C] |
-25…70, observe the free space for convection (see operating instructions) |
|||||||||
|
Storage temperature [°C] |
-40…85 |
|||||||||
|
Max. relative air humidity [%] |
95, (IEC 60068-2-30) |
|||||||||
|
Protection |
IP 20 |
|||||||||
|
Degree of soiling |
2; (IEC 62103) conductive soiling not permitted |
|||||||||
|
Tests / approvals |
||||||||||
|
EMC |
|
|||||||||
|
UL |
UL 508 (Industrial Control Equipment) |
|||||||||
|
Power Factor Correction (PFC) |
met |
|||||||||
|
Shock resistance |
|
|||||||||
|
Vibration resistance |
|
|||||||||
|
MTBF [h] |
915000 |
|||||||||
|
AS-i classification |
||||||||||
|
AS-i certificate |
98401 |
|||||||||
|
Mechanical data |
||||||||||
|
Housing materials |
steel sheet |
|||||||||
|
Installation |
rail TH35 (to EN 60715) |
|||||||||
|
Weight [kg] |
0.936 |
|||||||||
|
Displays / operating elements |
||||||||||
|
Function display LED |
green (indication AS-i voltage) |
|||||||||
|
Electrical connection |
||||||||||
|
Connection |
screw terminals |
|||||||||
|
Wiring
|
||||||||||
