In my previous video I discussed about, how to calibrate temperature transmitter with bath using HART COMMUNICATOR?

Today In this video I want to discuss about how to simulate and calibrate temperature Transmitter without temperature bath.

do you know the usage of hart communicator?

HART Communicator: So do you know what is HART?
The HART(Highway Addressable Remote Transducer) protocal is one of the most popular industrial protocols today. According to emerson there is a huge installed base of 4 to 20 milliAmps systems throughout the world used for calibration

Do you know how to simulate & Measure using Process Calibrator?
Process Calibrators are battery-powered, handheld instruments that sources, measures and simulates pressure, temperature, and electrical signals. The calibrator lets you troubleshoot, calibrate, verify, and document your work on process instruments. A thermocouple (TC) input/output jack and internal isothermal block with automatic reference-junction temperature compensation is also provided.

what is aTemperature Transmitter?
A temperature transmitter is an electrical instrument that interfaces a temperature sensor (that is thermocouple, RTD, or thermistor) to a measurement or control device (that is PLC, DCS, PC, loop controller, data logger, display, recorder, etc.). Typically, temperature transmitters isolate, amplify, filter noise, linearize, and convert the input signal from the sensor then send (transmit) a standardized output signal to the control device. Common electrical output signals used in manufacturing plants are 4 to 20milliAmps or 0 to 10Volt DC ranges.

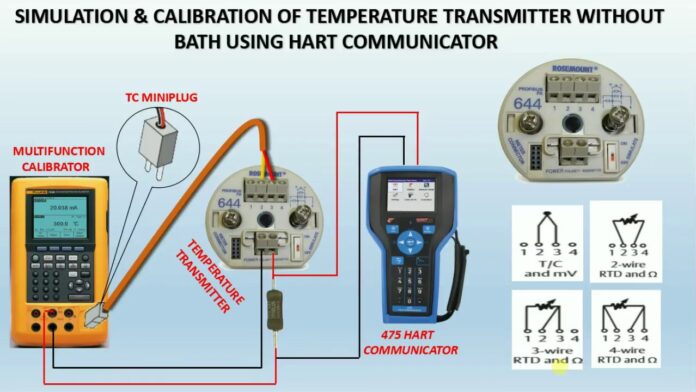

Now we will see how to simulate and calibrate temperature transmitter using HART:
The Transmitter can be configured for different types of RTDs and Thermocouple, and shown how to connect to the transmitter according to your configuration.
Here as an example, I connected Thermocouple option in a Transmitter for calibration.
Before simulating first select the source in process calibrator, then press TC/RTD button and then select the type of Thermocouple. Then simulate temperature by feeding through a keypad.
Before calibrating, Transmitter has to be configured to Thermocouple (K type) by using HART Communicator.
This process calibrator can be used for sourcing the temperature according to your range and it can also measure loop milliAmp according to the temperature we are sourcing.

After completing connections, then simulate Zero temperature value according to the lower range value in HART and check the corresponding 4 milliAmps in the process calibrator.

IF IT IS NOT SHOWING THE CORRESPONDING milliAmps then by using HART, do the lower sensor trim.

After this simulate the full range of transmitter in process Calibrator and check the corresponding 20 milliAmps .

If it is not showing the corresponding milliAmps then adjust 20 millliAmps by doing Upper sensor trim using HART.

By this we know how to simulate and calibrate temperature transmitter using HART
