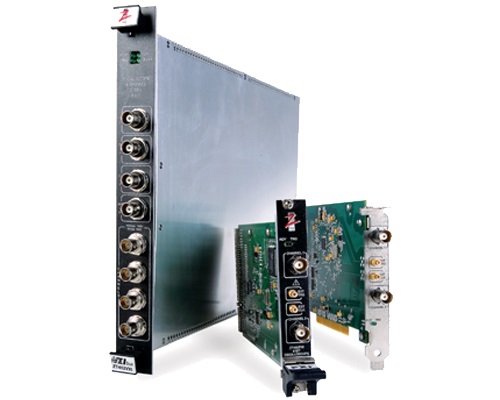

ZTEC Instruments-Oscilloscopes (Model:ZT450 Series)

0
337
Vui lòng liên hệ với chúng tôi– chúng tôi sẽ liên hệ lại với khách hàng bằng điện thoại hoặc email.
Lưu ý: Tham khảo ý kiến của nhân viên INO sẽ giúp bạn tiết kiệm được thời gian và chi phí khi cần mua sắm. ​​Với sự tư vấn của chúng tôi, bạn sẽ không gặp khó khăn khi tìm hiểu về đặc tính của sản phẩm cần mua.

ZT450 Series

  • High-speed acquisition
    • Real-time sampling up to 2.5 GS/s interleaved or 1.25 GS/s non-interleaved
    • Equivalent sampling up to 250 GS/s
  • On-board memory up to 32 MS record length
  • Programmable signal conditioning including impedance, range, coupling, filtering, offset, and attenuation
  • Embedded signal processing for vertical, horizontal and frequency-domain measurements
  • Two calculation channels for waveform math, digital filtering, FFTs, and more
  • Four non-volatile reference channels for storing and comparing waveforms
  • Save and recall configuration data from non-volatile memory
  • Multiple acquisition modes such as average, envelope, and equivalent-time
  • Advanced triggering modes such pattern/state, video, and pulse width
  • Timing and triggering capabilities allowing multiple board synchronization
  • ZScope C-Class interactive software and drivers for C/C++ and LabVIEW

Quick specs

Product Maximum
Sample Rate
Analog
Bandwidth
Maximum Record
Length
Resolution Voltage
Ranges
ZT450-01 2 GS/s 500 MHz 32M samples 8 bit 50 mVpp to
100 Vpp
ZT450-21 1 GS/s 500 MHz 32M samples 8 bit 50 mVpp to
100 Vpp
ZT450-55 2.50 GS/s 750 MHz 4M samples 8 bit 50 mVpp to
100 Vpp
ZT450-56 2.50 GS/s 750 MHz 32M samples 8 bit 50 mVpp to
100 Vpp
