Series Volts Amps IR
DJF Class J 600Vac 450Vac(or less) 1-600A 200KA RMS Sym., 100KA DC
FWA 130Vac 1000-4000A 200KA RMS Sym. 50KA @130Vdc
FWA 150V 70-1000A 100KA RMS Sym.(70-400A) 200KA RMS Sym.(450-1000A) 20KA @150Vdc(70-800A) 100KA @180Vdc(70-400A)
FWX 250Vac/dc 35-2500A 200KA RMS Sym.
FWH 250Vac/dc 35-1600A 200KA RMS Sym.  50KA @500Vdc
KAC 600Vac 1-1000A 200KA RMS Sym.
KBC 600Vac 35-800A 200KA RMS Sym.
FWP 700Vac 5-1200A 200KA RMS Sym.  50KA @700Vdc
FWJ 100Vac 35-2000A 25KA (35-200A) 100KA(250_2000A)  50KA @800Vdc(35-200A  ,450-600A)
FNM 250Vac (or less) 1/10-30A

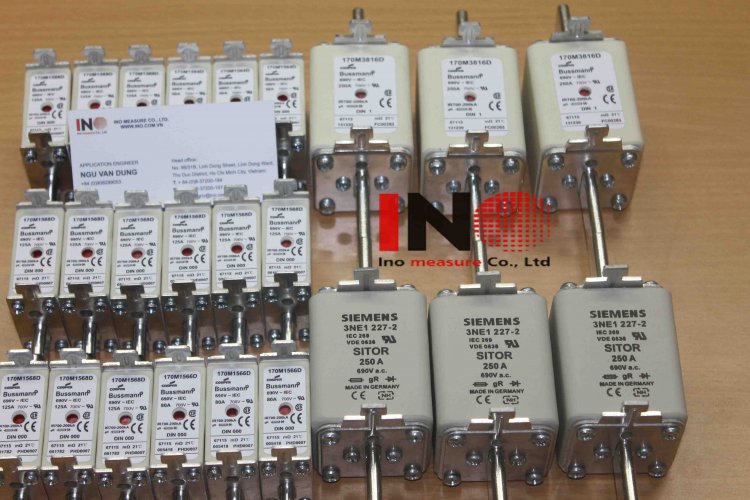

Square Body Fuse 170M Series   note: a large number of 170M models
British BS 88 240Vac/150Vdc  6-900A 200KA RMS Sym.
British BS 88 690Vac/500Vdc  6-710A 200KA RMS Sym.
Ferrule fuses
FWA (10*38mm) 150Vac/dc 5-60A 100KA RMS Sym.
FWA (21*51mm) 150Vac/dc 35-60A 100KA RMS Sym.
FWX (14*51mm) 250Vac/dc 1-50A 200KA RMS Sym.  50KA @250Vdc
FWH (6*32mm) 500Vac 0.25-30A 50KA @20% pf (0.25-20A)    20KA @20% pf (25-30A)
FWH (14*51mm) 500Vac/dc 1-30A 200KA RMS Sym.  50KA @500Vdc
FWC (10*38mm) 600Vac/dc 6-32A 200KA RMS Sym.  50KA @700Vdc
FWP (14*51mm) 690Vac(IEC)700Vac(UL) 1-50A 200KA RMS Sym.  50KA @800Vdc
FWP (22*58mm) 690Vac(IEC)700Vac(UL) 20-100A 200KA RMS Sym.  50KA @500Vdc
FWK (20*127mm) 750Vac 5-30A 45KA RMS Sym.
FWK (25*146mm) 700Vac 35-60A 45KA RMS Sym.
FWJ (14*67mm) 1000Vac/800Vdc 20-30A 25KA RMS Sym.  20KA @800Vdc
LP-CC Class CC 600Vac(or less) 150Vac(3-15) 1/2-30A 200KA RMS Sym. 20KA DC
FNQ-R Class CC 600Vac(or less) 300Vdc(15-20A) 1/4-30A 200KA RMS Sym. 20KA DC
KTK-R Class CC 600Vac (or less) 1/10-30A 200KA RMS Sym.
TCF&TCF-RN Class CF 600Vac 300Vac(or less) 1-100A 300KA RMS Sym.(UL)200KA RMS Sym.(CSA) 100KA DC(UL&CSA)
SC Class G 600Vac(1/2-20A) 480Vac(25-60A)170Vac 1/2-60A 100KA RMS Sym., 10KA DC
LP-SP Class J 600Vac 300Vac(or less) 1-600A 300KA RMS Sym., 100KA DC
JKS Class J 600Vac (or less) 1-600A 200KA RMS Sym.
KRP-C-SP ClassJ 600Vac (or less) 300Vdc(601-2000A) 601-6000A 300KA RMS Sym., 100KA DC
KTU Class L 600Vac (or less) 601-6000A 200KA RMS Sym.
KTN-R Class RK1 250Vac (or less) 1-600A 200KA RMS Sym.
KWS-R Class RK1 600Vac (or less) 600Vac(20-600) 1-600A 200KA RMS Sym.AC  100KA DC
DLN-R Class RK5 250Vac (or less) 1-600A 200KA RMS Sym. 20KA DC
FRN-R Class RK5 250Vac (or less) 250Vdc(225-600) 1/10-600A 200KA RMS Sym. 20KA DC
FRS-R Class RK5 600Vac (or less) 300Vdc 1/10-600A 200KA RMS Sym.  20KA @300Vdc
PVS-R Class rk5 600Vac/dc 20-600A 200KA RMS Sym., 100KA DC
JJS Class T 600Vac (or less) 1-800A 200KA RMS Sym.
JJN Class T 300Vac (or less) 170Vdc(601-1200A) 1-1200A 200KA RMS Sym. 20KA DC @160Vdc 100KA DC @170Vdc
LEM/Lime sensors
LF1005-S
LF505-S
LT308-S7
HAS300-S/SP50
HAT1000-S
