2 SENSORS GAS ANALYSER

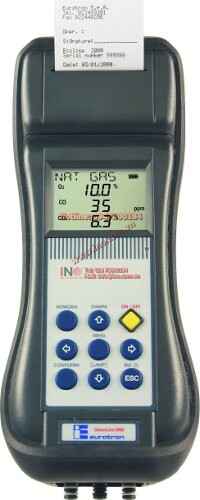

GreenLine 2000 is a multigas compact hand-held multifunction instrument. The micro-processor hased instrument includes a flue gas analyser, and an ambient parameters indicator.
Two internal electrochemical sensors read the Oxygen (O2) and carbonic monoxide (CO) gas concentration.
The gas temperature and air temperature are used in connection with the gas analysis to calculate the efficiency, excess air, and CO2 concentration.
A 10 gas parameters programmable table is used for calculations approved in accordance with DIN33962.
External sensors are available for auxiliary measurements: ambient CO concentration (for operator’s safety), gas network leakage procedure (pressure decay method) and natural gas leakage detector (sniffer).
The instrument is completed with a differential pressure (draught) sensor, an internal printer, an internal memory for storing data and a RS232 serial interface for configuration and data transfer from and to a PC.
