Description of the good:

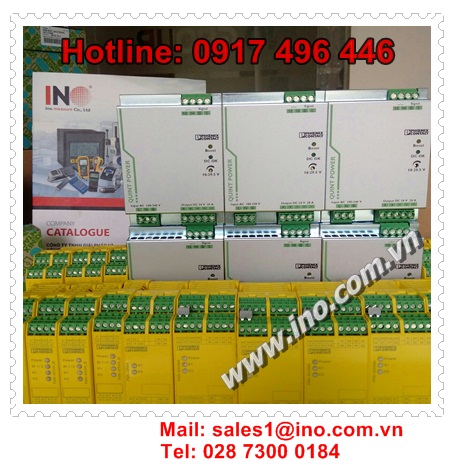

QUINT POWER is the powerful 60 – 960 W DC power supply unit for universal use. With its wide-range input, single and three-phase versions, and
international approval package, this solution is unrivalled. QUINT POWER provides reliable power supply: generously dimensioned capacitors ensure
mains buffering of over 20 ms at full load. Full output power is provided by all three-phase devices, even in the event of a permanent phase failure.
The Power Boost power reserve easily starts loads with high inrush currents and ensures that fuses are reliably tripped. Preventive function monitoring
diagnoses impermissible operating states and minimizes downtimes in your system. Remote monitoring is provided by an active transistor switching
output and a floating relay contact. All devices are idling-proof and short-circuit-proof, and are available with a regulated and adjustable output voltage
of 12, 24, and 48 V DC with output currents of 2.5, 5, 10, 20, 30, and 40 A. Power supply units for use in Ex zone 2, uninterruptible solutions, AS-i power
supply units, and a QUINT diode complete this comprehensive product range.
Technical data:
Nominal input voltage range | 100 V AC … 240 V AC |
Input voltage range | 85 V AC … 264 V AC |
90 V DC … 350 V DC | |
AC frequency range | AC frequency range |
Frequency range DC | 0 Hz |
Nominal output voltage | 24 V DC ±1 % |
Setting range of the output voltage (USet) | 22.5 V DC … 28.5 V DC |
Nominal output current (IN) | 20 A (up to 60°C) |
► Các câu hỏi, thắc mắc, thông tin liên quan đến sản phẩm từ khâu mua sắm, lựa chọn, sử dụng, cài đặt hay thay thế, vui lòng liên hệ với INO team để được hỗ trợ và tư vấn kịp thời.
Bộ nguồn Aplisens | Power supply ZL-25-01 | Input voltage 230 V, 50 Hz (±10%) | Output voltage 2×24 VDC |
Bộ nguồn Aplisens | Power supply ZL-24-08 | Input voltage 230 V, 50 Hz (+15%, -20%) | Output voltage 24 ± 1,2 V DC |
Bộ nguồn Aplisens | Intrinsically safe power supply and isolator ZS-30Ex1 |
Supply voltage 24V DC ± 10% | Supply current ≤90 mA |
Bộ nguồn Aplisens | Intrinsically safe network power supply and isolator ZS-31Ex1 | Supply voltage rated: 230 V AC ±10% | Maximum power ≤ 4 VA |
Bộ nguồn Aplisens | Power supply/ /signal converter ZSP-41/1 and ZSP-41/2 |
Supply voltage: 24 V ± 20% | Supply current: L100 mA |
Bộ nguồn Aplisens | Isolator/signal converter SP-11 | Supply voltage: 9…36 V | 350 kW(voltage input) / 20 W(current input) |
