 SPS 3kW SERIES OF PROGRAMMABLE DC SWITCHING POWER SUPPLIES (1.6kW-3kW)

The SPS 3kW series of programmable dc switching power supplies strikes the perfect balance between essential features and customer value.

AMREL’s SPS 3kW Switching Power Supply’s Digital Models are available with:


• ATE Digital Programming Ready:
• • • • • 14-bit Dual Encoders and 4-digit Voltage and Current Read Back
• • • • • RS-232, RS-485 & GPIB with built-in master-slave capability
• • • • • LabVIEW and LabWindows drivers, and Standard SCPI Command Set and Fault Registers
• • • • • for simple ATE System Integration and Automation
• More Features Maximizes your ROI:
• • • • • In-rack closed-case digital calibration saves annual calibration costs
• • • • • Standard Over-Voltage, Over-Current and Over-Temperature Protection
• • • • • In-field firmware updates keep the SPS features and functions up-to-date
• • • • • Advanced fault monitoring (remote inhibit and dry fault contact output) and optimized heat dissipation

The SPS 3kW programmable dc switching power supply series, is a member of the ePower line of programmable dc power supplies. Bench of rackmount compatible, the SPS 3kW was designed for ATE System Integration.

With multiple voltage and current options, the SPS 3kW series has a wide range of programmable dc switching power supplies to choose from.  As with the entire ePower line of programmable dc power supplies, AMREL can customize the SPS programmable switching power supplies to fit your unique application needs.

AMREL manufactures the 3kW Series programmable switch mode power supplies These 3kW Digital models offerFlexible Control Methods and Simple User Navigation.

___________________________________________________________________________________________

Features applicable to the 3kW Digital

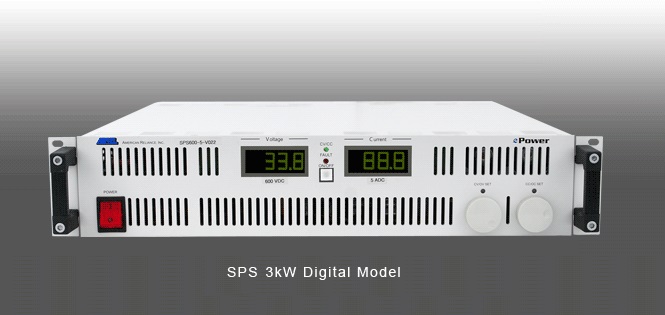

The SPS 3kW Digital programmable switch mode power supply provides a simple yet elegant user interface.  Dual high-intensity LED displays provide real-time voltage and current measurements.  For local control, users can easily adjust all programmable settings on the fly via dual digital encoders.   While the illuminating front panel on/off key, and multi-purpose tri-colored LEDs keep users informed of the unit’s operating status, fault protection trips, programmed settings and CV/CC operating modes.

In addition, the SPS 3kW Premium programmable switch mode power supply comes standard with RS-232, GPIB IEEE-488 and RS-485 interfaces, including master-slave capability.  Standard LabVIEW and LabWindows drivers provide simple ATE Integration, and a complete set of SCPI Commands provide flexible programmability.  Connectors are provided on the rear of the unit. Instructions for configuring are in the manual.  Users can begin testing locally or remotely via computer interface within minutes.
_________________________________________________________________________________________

Exceptional Features and Benefits include:

• Exclusive 800Vdc and 1000Vdc Models: Achieve test results with the exact voltage ratings you need
• Industry’s Best Cost-to-Feature Ratio:Why pay for features you don’t need?
• Wide Range 400Hz AC Input: Single Phase PFC 85~165Vac @ 45 ~ 440Hz
• Rack-mount Ready: 19” rack mount kit included for ATE System Integration
• Increased Reliability: front & rear air circulation effectively cools high-heat power components
 to ensure performance under high ambient conditions
• High Power Density: 3kW in a 2U package
 Quiet and Powerful: Fan-speed control to reduce acoustic noise
 Advanced Remote Fault Monitoring:
• • • • • Fault Dry Contact Output for automated protection trip alarms
• • • • • Remote Shut Down for interlock and redundant system protection
• Designed for ATE Applications (Digital Version Only):
• • • • • Standard GPIB/RS-232/RS-485 interfaces with master-slave capability
• • • • • Standard LabVIEW and LabWindows Drivers o SCPI command set allows
ATE system integration with simplicity & ease
• Two modes in one: Operate in CV, CC or Auto-crossover mode with ease
• Parallel or Series Operation: For your high current/voltage applications
• Test Flexibly: Remote Sensing compensates line-drop measurement errors
• Safety First: Quickly drains Output Voltage during protection trips
• More Options: AMREL’s Exclusive Solid-state or Standard Mechanical Polarity Reversal & Isolation Relays
• AMREL’s Unique Advantage: Modified & Customized Solutions Available


AMREL’s Exclusive and Innovative 400hz-Rated PFC ac Input
Amrel's SPS 3kW offers the industry’s only 45 ~ 440Hz & 85 ~ 265Vac rated PFC (power factor corrected) AC Front End.  The unique design offers flexibility for using standard voltages across the world, and allows users in the avionics/defense/military to power their DUT via 400Hz input frequency.

Maximize Your ROI (Return On Investment)

Closed-case Calibration
With the ePower line, you’ll never have to send your programmable dc switch mode power supply back to the factory for calibration or remove dozens of screws to reach a potentiometer.  Simply follow the AMREL calibration routine using the front panel and you should be back up and running in a very short period of time (some electronic test equipment needed).  This will virtually eliminate downtime and eradicate the annual cost associated with shipping your SPS3kW back to the factory for calibration.

Limit Protection
The SPS 3kW switching power supply offers limit protection for over-voltage, over-current, and over-temperature.  During an over-limit condition the output is shut down instantly to protect both the unit under power and the power supply.

Stay Current on the Latest Upgrades
The SPS switching power supply offers in-field firmware updates to keep your SPS 3kW up-to-date with the latest features, functions and upgrades.

Designed with Reliability in Mind

Optimized System Heat Dissipation
Front and rear air circulation and strategically placed high-density fans effectively cool high-heat power components to ensure performance under high ambient conditions and provide the added benefit of zero-stacking for high density channel counts.

Advanced Remote Fault Monitoring
For lights-out testing and ATE system automation, the SPS offers fault dry contact to signal faults in the case of protection mode trips.  Remote shut down of the unit is easily achievable via the low-active remote inhibit for interlock and redundant system protection.

Widest Selection of Standard & Customized Programmable Power Supplies
Select from our exclusive 800Vdc and 1000Vdc ratings or over 16 standard models.

Can’t find what you need? AMREL’s outstanding engineering team can provide customizations and modifications to any of the SPS programmable switch mode power supplies.  AMREL’s customizations can range from a simple modification, such as a different front panel color, to a complete custom electro-mechanical design.  Contactthe factory or your local regional salesperson for more information on our customized programmable power supplies.

SPS 3kW PROGRAMMABLE DC SWITCHING POWER SUPPLIES
SPSZ-Y-KXUV
X: 0 = None
Z: Max Voltage Rating
    R = Reverse Polarity/Isolation Relay
Y: Max Current Rating
    S = Solid State Reverse Polarity/Isolation Relay
V: 1 = 1Φ 240Vac 50/60Hz
U: E = Ethernet/USB/RS-232/GPIB
V: 2 = 3Φ 208Vac 50/60Hz
U: 5 = Ethernet/RS-485/RS-232/GPIB
SPS 1.6kW Bravura Series Model Power Voltage Current PARD4
(RMS)
PARD4
(pk-pk)
Tup/Tdn6
(ms)
SPS 3kW Programmable Switching Power Supplies 12-250 3kW 12Vdc 250Adc 12 75 100/100
SPS 3kW Programmable Switching Power Supplies 20-150 3kW 20Vdc 150Adc 10 70 100/100
SPS 3kW Programmable Switching Power Supplies 32-93 3kW 30Vdc 93Adc 10 50 100/100
SPS 3kW Programmable Switching Power Supplies 40-75 3kW 40Vdc 75Adc 10 50 100/100
SPS 3kW Programmable Switching Power Supplies 60-50 3kW 60Vdc 50Adc 10 50 100/100
SPS 3kW Programmable Switching Power Supplies 100-30 3kW 100Vdc 30Adc 10 75 100/100
SPS 3kW Programmable Switching Power Supplies 150-20 3kW 150Vdc 20Adc 15 150 170/170
SPS 3kW Programmable Switching Power Supplies 300-10 3kW 300Vdc 10Adc 25 300 170/170
SPS 3kW Programmable Switching Power Supplies 400-8 3kW 400Vdc 8Adc 30 350 170/170
SPS 3kW Programmable Switching Power Supplies 500-6 3kW 500Vdc 6Adc 40 400 170/170
SPS 3kW Programmable Switching Power Supplies 600-5 3kW 600Vdc 5Adc 40 400 170/170
SPS 3kW Programmable Switching Power Supplies 800-3.6 2.8kW 800Vdc 3.6Adc 40 400 170/170
