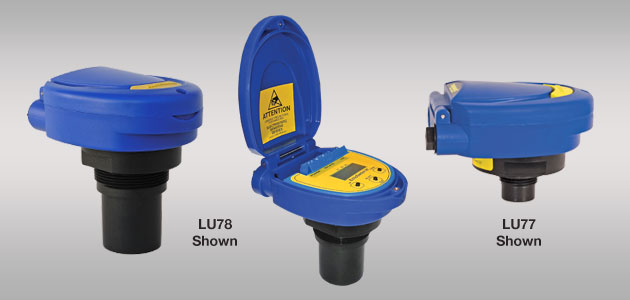

Flowline-EchoSwitch® Ultrasonic Level Switch & Controller ( Model: LU74-78 )

0
198
Vui lòng liên hệ với chúng tôi– chúng tôi sẽ liên hệ lại với khách hàng bằng điện thoại hoặc email.
Lưu ý: Tham khảo ý kiến của nhân viên INO sẽ giúp bạn tiết kiệm được thời gian và chi phí khi cần mua sắm. ​​Với sự tư vấn của chúng tôi, bạn sẽ không gặp khó khăn khi tìm hiểu về đặc tính của sản phẩm cần mua.

Application

The general purpose ultrasonic level sensor provides continuous level detection up to 26.2' (8m) with 3 programmable relays for level switch or control functions, and a 4-20mA signal output. The sensor is programmed via the integral push button display module. Each relay can be configured on a single set point (high level alarm or low level alarm) or latched on two set points for automatic fill or empty in simplex (one pump or valve), duplex (two pumps) or triplex (three pumps) level control modes with selectable time delay and fail-safe logic. The embedded level controller can lower cost by replacing external control hardware. This non-contact liquid level sensor is ideally suited for corrosive, sticky or dirty liquids, and is broadly selected for pump lift station, sump and day tank level applications.

Features

Offered in 3 level detection ranges from 9.8' (3m) to 26.2' (8m)

Configuration is simple via integral push button display module

Three programmable relays for switch, pump control and fail-safety
        • 1 pump or valve with 2 alarms
        • 2 pumps (lead-lag) with 1 alarm
        • 2 pumps (duplexing) with 1 alarm
        • 3 independent switch point alarms

4-20 mA output can be used to provide local or remote level indication

LCD display indicates level height in engineering units and relay status

Narrow 2" or 3" beam width for applications with limited measurement space

Short 4" or 8" dead band maximizes the measureable filling capacity of the tank

PVDF transducer and NEMA 4X polycarbonate enclosure for corrosive liquids

Automatic temperature compensation for accurate measurement

– See more at: http://www.flowline.com/echoswitch.php#sthash.bO8uD68l.dpuf

Application:

The general purpose ultrasonic level sensor provides continuous level detection up to 26.2' (8m) with 3 programmable relays for level switch or control functions, and a 4-20mA signal output. The sensor is programmed via the integral push button display module. Each relay can be configured on a single set point (high level alarm or low level alarm) or latched on two set points for automatic fill or empty in simplex (one pump or valve), duplex (two pumps) or triplex (three pumps) level control modes with selectable time delay and fail-safe logic. The embedded level controller can lower cost by replacing external control hardware. This non-contact liquid level sensor is ideally suited for corrosive, sticky or dirty liquids, and is broadly selected for pump lift station, sump and day tank level applications.

Features:

Offered in 3 level detection ranges from 9.8' (3m) to 26.2' (8m)

Configuration is simple via integral push button display module

Three programmable relays for switch, pump control and fail-safety
        • 1 pump or valve with 2 alarms
        • 2 pumps (lead-lag) with 1 alarm
        • 2 pumps (duplexing) with 1 alarm
        • 3 independent switch point alarms

4-20 mA output can be used to provide local or remote level indication

LCD display indicates level height in engineering units and relay status

Narrow 2" or 3" beam width for applications with limited measurement space

Short 4" or 8" dead band maximizes the measureable filling capacity of the tank

PVDF transducer and NEMA 4X polycarbonate enclosure for corrosive liquids

Automatic temperature compensation for accurate measurement

Specifications:

Range:     LU77: 4" to 9.8' (10cm to 3m)
LU74: 8" to 18.0' (20cm to 5.5m)
LU78: 8" to 26.2' (20cm to 8m)
Repeatability:     0.25" (6.35mm)
Signal output:     4-20 mA, two-wire
isolated, sinking
Excitation voltage:     12-28 VDC
Loop resist:     500 Ohms @ 24 VDC
Signal fail-safe:     4mA, 20mA, 21mA,
22mA or hold last
Dead band:     LU77: 4" (10cm)
LU74/78: 8" (20cm)
Beam width:     LU77: 2" (5cm)
LU74/78: 3" (7.6cm)
Configuration:     Push button
Memory:     Non-volatile
Supply voltage:     95-250 VAC
Display units:     Inch, cm, percent, feet or meter
Power:     20 watts @ 120 VAC
Contact type:     Relay 1, SPDT relay
Relay 2 & 3, SPST, N.O.
All commons connected
together
LCD indication:     Level and relay status
Contact rating:     2A, 30 VDC
60W (DC), 125 VA
220 VDC, 250 VAC
Display type:     Level and relay status,
6 character
Contact fail-safe:     Programmable / selectable
Process temp.:     F: -7° to 140°
C: -20° to 60°
Temp. comp.:     Automatic
Ambient temp.:     F: -40° to 140°
C: -40° to 71°
Pressure:     MWP = 30 PSI (2 bar)
Enclosure rating:     NEMA 4X (IP65)
Encl. material:     Polycarbonate
Encl. hardware:     Brass & stainless
Enclosure vent:     Water tight membrane
Trans. material:     PVDF
Conduit entrance:     Dual, 1/2" NPT
Process mount:     LU77: 1" NPT (1" G)
LU74/78: 2" NPT (2" G)
Mount gasket:     Viton®
Classification:     General purpose
Compliance:     RoHS
Approvals:     CE
