Key Facts
- Two frequency ranges from 0.8 GHz to 3.0 GHz and 2.5 GHz to 6.0 GHz
- Output power from 15 W to 200 W
- Ideal for system configuration together with the R&S®BBA100 broadband amplifier family
- 100 % mismatch tolerance
- Suitable for amplitude, frequency, phase and pulse modulation
- Three-year warranty and worldwide spare parts availability
Brief Description

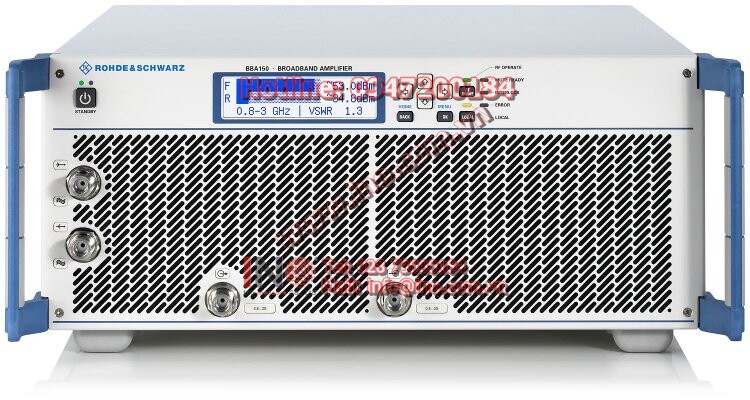

The R&S®BBA150 is a new family of broadband amplifiers for the microwave range. The instruments, which are optimized for high frequencies, offer high power, yet are compact and lightweight. In combination with the field-tested R&S®BBA100 broadband amplifier family, amplifier systems from 9 kHz to 6 GHz including various RF switching options can be set up.
Features & Benefits
-
The most advanced broadband amplifier on the market
- Sophisticated RF design
- Compact and lightweight
- Series production
-
Reliable with high availability
- Outstanding expertise in amplifier development
- Cost benefit due to little downtime
-
Flexible control and operation
- Manual operation
- Local and remote operation via web browser and PC
- Integration into the R&S®EMC32 measurement software
- Remote control via Ethernet
- Safety thanks to two different interlocks
-
Two families – one amplifier system
- Perfect integration
- RF switching options
-
Excellent service and quick maintenance
- Outstanding service concept
- Extended warranty for maximum protection of investment
- From pre-sale to service – at your doorstep
Specifications
| RF specifications | ||
| Frequency range | 0.8 GHz to 3.0 GHz, instantaneously; 2.5 GHz to 6.0 GHz, instantaneously |
|
| Nominal power classes | 0.8 GHz to 3.0 GHz | 30 W (44.8 dBm), 60 W (47.8 dBm), 110 W (50.4 dBm), 200 W (53.0 dBm) |
| 2.5 GHz to 6.0 GHz | 15 W (41.8 dBm), 30 W (44.8 dBm), 60 W (47.8 dBm), 100 W (50.0 dBm) |
|
| Nominal output load | 50 Ω | |
| Gain flatness | ±3.0 dB (or better, see data sheet) | |
| Gain adjustment range | > 15 dB | |
| Spurious | –80 dBc (nom.), max. –70 dBc | |
| Modulation capability | AM, FM, φM, PM | |
| Nominal input impedance | 50 Ω | |
| Input level for nominal output power | –3.4 dBm | |
| Nominal output impedance | 50 Ω | |
| Output mismatch protection | 100 % | |
| RF sample and detected sample signals | ||
| RF sample signal coupling factor | RF forward and reflected sample ports, optional | approx. 46 dB (see test report for details) |
| Detected sample signal level | detected forward and reflected sample ports, optional | 0.8 V to 2.6 V DC |
| RF and sample connectors | ||
| RF input port | either front panel | N female |
| or rear panel | N female | |
| RF output port | either front panel | N female |
| or rear panel | N female | |
| RF sample ports | forward output power, optional | N female |
| reflected output power, optional | N female | |
| Detected sample ports | forward output power, optional | N female |
| reflected output power, optional | N female | |
| Graphical user interface | ||
| Local graphical display | 200 × 48 pixel, monochrome | |
| Web GUI | via Ethernet | RJ-45, 10/100 Mbit/s, autonegotiation, half/full duplex |
| Remote control | ||
| Ethernet | RJ-45, 10/100 Mbit/s, autonegotiation, half/full duplex | |
| General data | ||
| Operating voltage range | 100 V to 240 V AC ± 10 %, single phase, 50 Hz to 60 Hz ± 6 % | |
| Power consumption | depending on power class | max. 2.0 kVA |
| Air cooling | forced air, built-in fans, air entry at front, air exit at rear | |
| Dimensions | W × H × D, incl. fans, handles and feet | 430 mm × 196 mm × 580 mm (16.93 in × 7.72 in × 22.83 in) |
| for rackmounting | 19" 1/1, 4 HU | |
| Environmental conditions | ||
| Temperature loading | operating temperature range | 0 °C to +40 °C |
| storage temperature range | –20 °C to +70 °C | |
| Damp heat | max. +40 °C at 95 % rel. humidity, without condensation | |
| Altitude | operating altitude | up to 2000 m |
| storage altitude | up to 4600 m | |
| Protection | ||
| Input overdrive | without damage | max. +15 dBm |
| Load VSWR | infinite | |
| Interlock | 1 device interlock, 1 configurable interlock | |
| Input protection against bias voltage | optional | DC block level ≤ 50 V DC |
| Transient voltage compatibility | category II, in line with IEC 60364-4-443 | |
| Short-circuit breaking capacity | automatic all-pole 20 A circuit breaker | |
| Thermal overload | shutdown at +50 °C ambient temperature |
