Atlas – solar and environmental testing (Model :SEC 2100)

1
362
Vui lòng liên hệ với chúng tôi– chúng tôi sẽ liên hệ lại với khách hàng bằng điện thoại hoặc email.
Lưu ý: Tham khảo ý kiến của nhân viên INO sẽ giúp bạn tiết kiệm được thời gian và chi phí khi cần mua sắm. ​​Với sự tư vấn của chúng tôi, bạn sẽ không gặp khó khăn khi tìm hiểu về đặc tính của sản phẩm cần mua.

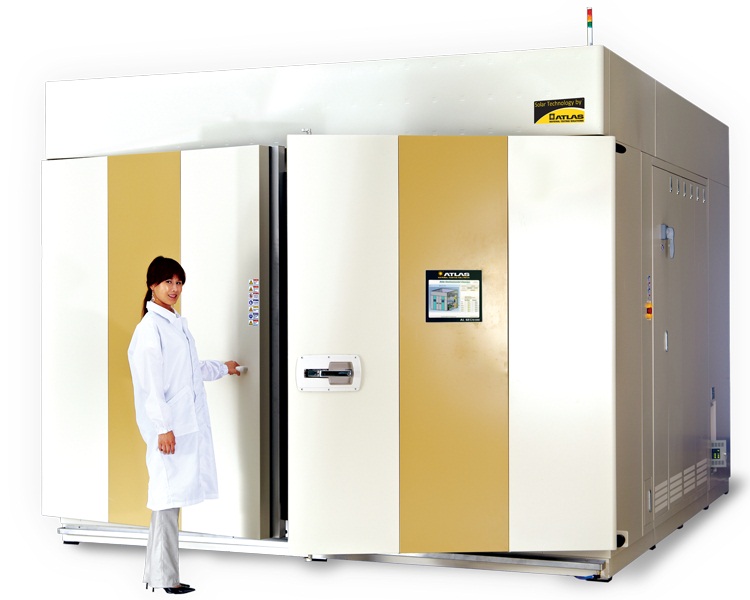

The SEC 2100 is part of the Solar Technology by Atlas market approach offering integrated, ready-to-use test chambers for various solar and environmental applications. The SEC 2100 combines environmental simulation with metal halide lighting technology. It's a full function climatic chamber with additional simulation of the global sunlight spectra. Exposure volumes of 4050 liters are offered within the SEC 2100 standard double door walk-in solar environmental chambers for e.g. full PV module testing.

FEATURES

  • Test chamber capacity approx. 4000L
  • Radiation area approx. 13,600 cm2 for Uniformity Class B
  • Radiation area approx. 16,000 cm2 for Uniformity Class C
  • Lamp: 2x MHG 4,000W Luminary
  • Intensity: 800W ~ 1200W /m2 (Adjustable)
  • Wavelength: 280 ~ 3,000nm (Full Spectrum)
  • -40℃ ~ +120 °C (W/O Radiation)
  • -20℃ ~ +120 °C(W/ Radiation)
  • 30% ~ 95%RH (W/O Radiation)
  • 20% ~ 80%RH (W/ Radiation)
  • 12.1" color touch screen Graphic User interface
  • Intuitive control features and easy-to-use programming logic
  • 6 Channel DAQ integrated for temperature sensors
  • Multi-source temperature control pre-implemented and selectable in user interface
  • Pre-wired for BST (Black Standard Temperature) sensor and control
  • Pre-wired for plug-and-play radiometer for irradiance measurement
  • Galvanized steel with powder coated exterior
  • Engineered diffusive reflective stainless steel inner testing chamber for optimum spatial uniformity
  • Easy access swing doors to luminary systems
  • Robust refrigeration system for precision control of environmental parameters
  • Multi-stage safety features

 OPTIONS

  • Option Atlas25+ Core Cycles
  • Indoor Filter
  • Pyranometer CMP6 Class 1 – General Purpose
  • Black Standard Temperature (BST)
  • Controlling the Black Standard Temperature (BST)

 STANDARDS

DIN EN 61646 VDE 0126-32
Thin-film terrestrial photovoltaic (PV) modules – Design qualification and type approval

  • IEC 60904-9
    Photovoltaic devices – Part 9: Solar simulator performance requirements
  • IEC 61215
    Crystalline silicon terrestrial photovoltaic (PV) modules – Design qualification and type approval
