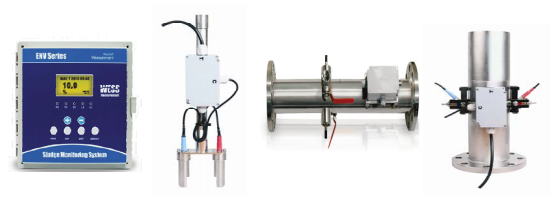

WESS-Máy đo nồng độ bùn(Model: ENV200)

2
385
Vui lòng liên hệ với chúng tôi– chúng tôi sẽ liên hệ lại với khách hàng bằng điện thoại hoặc email.
Lưu ý: Tham khảo ý kiến của nhân viên INO sẽ giúp bạn tiết kiệm được thời gian và chi phí khi cần mua sắm. ​​Với sự tư vấn của chúng tôi, bạn sẽ không gặp khó khăn khi tìm hiểu về đặc tính của sản phẩm cần mua.

ENV200 dùng để đo mật độ chất rắn lơ lửng trong chất lỏng.

Do mat do bun

Features
  • Continuous measurement
  • No flow detection possible
  • 10,000 points Data Logging & Trend Mode
  • EEAM(Envelope Energy Average Method)
  • Various types of sensors
  • PCM(Process Condition Monitoring)
Product Features Application Industry
▪ Continuous measurement
▪ Process monitoring possible(run, stop, full, empty)
▪ 10,000 points Data Logging & Trend Mode
▪ EEAM(Envelope Energy Average Method)
▪ Various types of sensors
▪ In-situ measurement and calibration
Application Industry
▪ Water, wastewater treatment
▪ Pulp and paper
▪ Food and beverage
▪ Chemical
▪ Mining
Controller
C2‐S
Measuring Principle
Ultrasonic Attenuation and EEAM(Envelope Energy Average Method)
Measuring Ranges
0 ~200,000mg/l (0~20%)
Option : 0 ~ 400,000mg/l(0~40%)
Measuring Mod
Process Mode, Real-time Mode
Display
Density, Time, Pipe condition, Flow condition, mA , etc.
Resolution
0.1% or 0.01%(selectable)
Accuracy
± 1% of F.S. or ± 2,000mg/l, whichever is greater
Repeatability
± 1% of reading
Operational Temp.
-20 ~ 70°C
Data Saving
Maximum 400 days Data logging & Trend
Screen
Numeric, Process, Date Trend, Diagnosis
Outputs
Current Output : 4~20mA,   nom. Load 250Ω
(load range : 100 ~ 750Ω)Relay
 Relay Output : 3 SPDT(5A, 250VAC) – “ER” “R1” “R2”   Digital Output : RS232C(Standard) or RS485(Option)
Power Supply
Standard : 100 ~ 240V AC, 50~60Hz, ≤6W Option : 20~30V DC
Encl. Material
Polycarbonate
Dimension
260(W) x 258(H) x 131(D)mm
Mounting
Hole center   153(W) x 273(H) mm(Ø 8.2 x 4ea)
Weight
3 kg
IP Rating
IP67
Certificate
CE
Sensor
S2‐S(Spool‐piece type)
Material
Body : S.S.316, Ultrasonic Head : Epoxy
Pipe size
50A~600A
Pressure
Max. 145psig(10bar)
Frequency
1MHz ~1.5MHz ( Auto frequency )
Cable Length
10m(33ft), Max. 100m extensible (Junction to Controller)
Operational Temp.
-10 ~ 60°C
Weight
Depends on pipe diameter
IP Rating
IP68
S2‐T(Tank‐mount type)
Material
Body : S.S.316, Ultrasonic Head : Epoxy
Pressure
Max. 145psig(10bar)
Frequency
1MHz ~1.5MHz ( Auto frequency )
Cable Length
10m(33ft), Max. 100m extensible (Junction to Controller)
Operational Temp.
-10 ~ 60°C
IP Rating
IP68
S2‐C(Clamp‐on type)
Material
Body : S.S.316 and aluminum, Ultrasonic Head : Epoxy
Pipe Size
50A ~ 200A
Frequency
1MHz ~1.5MHz ( Auto frequency )
Operational Temp.
-20 ~ 60°C
Junction Box
Material
ABS
Oper. Temp.
-40 ~ 85°C(-40~185°F)
Dimension
125(W) x 75(H) x 44(D)mm
Weight
450g
IP Rating
IP68
Mounting
Center hole 115(W) x 65(H) (M5 x 2pcs)
Electric Connection:
Probe
Controller
2-pin waterproof connector(30cm, 1ft)
5-core cable(10m, 30ft)
