- 10,000 pulses/sec.
- 4.8kV Burst voltage
- Spike frequency up to 1MHz
- Built-in 1ph or 3ph coupler up to 50A
- Pulse verification acc. to Ed.2 on each coupling path
- Standard test routines
- USB and GPIB interfaces
- Software for Windows Vista & Windows 7
Application

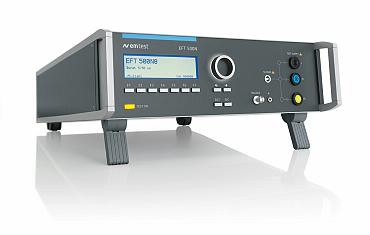

EFT 500N5 series – EFT/Burst tester
The EFT 500N5 series are the state-of-the-art EFT/Burst testers with a built-in coupling/decoupling network for single phase or three-phase mains supply lines and a HV terminal to connect a capacitive coupling clamp.
The spike frequency can be varied from as low as 100Hz up to 1,000kHz. The EFT 500N5 is capable to generate 10,000 spikes per second or up to 1,000 spikes per burst.
Its performance fully complies with IEC 61000-4-4 Ed.2:2004. Pre-programmed Standard Test routines and a number of selected User Test routines make the EFT 500N5 an optimum standalone solution for both testing during development and final testing of products and sub-assemblies.
The spike frequency can be varied from as low as 100Hz up to 1,000kHz. The EFT 500N5 is capable to generate 10,000 spikes per second or up to 1,000 spikes per burst.
Its performance fully complies with IEC 61000-4-4 Ed.2:2004. Pre-programmed Standard Test routines and a number of selected User Test routines make the EFT 500N5 an optimum standalone solution for both testing during development and final testing of products and sub-assemblies.
Benefits
EFT 500N5 series – The Burst/EFT generators that go beyond specification
The wide ranges offered to adjust the spike frequency and the burst duration are well-known for many years. Of course, the EFT 500N5 meets the latest waveform requirements into load at the coaxial 50ohm output as well as at the DUT port in common mode operation unlike other generators. The EFT 500N5 is the true, fully compliant EFT/Burst tester.
Different models of the standalone EFT 500N5 are avialable. It can be ordered with a built-in single phase coupler as well as with a built-in three-phase coupler for rated DUT currents up to 50A.
The EFT 500N5 can also be integrated in a complete test system in combination with other generators of the EM TEST 500 series and operate via a common coupling/decoupling network being equipped with the corresponding control interface.
Different models of the standalone EFT 500N5 are avialable. It can be ordered with a built-in single phase coupler as well as with a built-in three-phase coupler for rated DUT currents up to 50A.
The EFT 500N5 can also be integrated in a complete test system in combination with other generators of the EM TEST 500 series and operate via a common coupling/decoupling network being equipped with the corresponding control interface.
